商品について

楽天での商品説明(PLAYS REGAL)

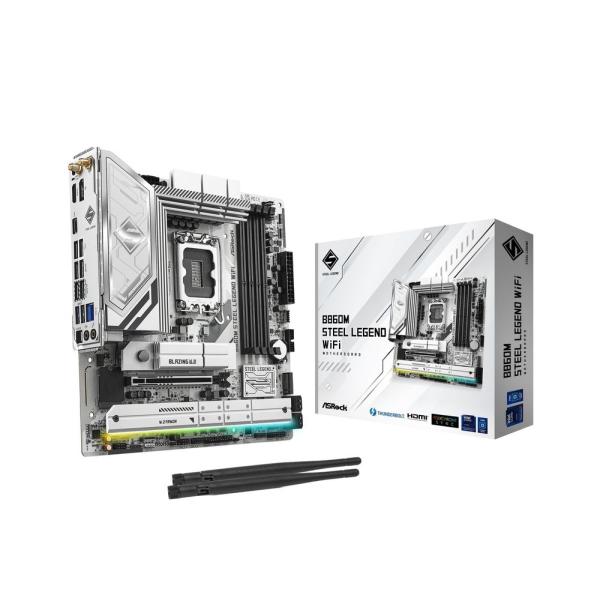

商品情報商品の説明【Socket】LGA1851 【チップセット】INTEL　B860M 【フォームファクター】Micro ATX 【メモリ仕様1.】4 x DDR5 DIMM Slots 【メモリ仕様2.】Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)* 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively. - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 256GB - Supports Intel Extreme Memory Profile (XMP) 3.0x * Please refer to Memory Support List on ASRock's website for more information. (www.asrock.com/) - 4 x DDR5 DIMM Slots 【電源Phase】12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA 【GPU機能】Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Intel Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x Intel ThunderboltTM 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* * Supports two 4K displays or one 8K display * Only the CPU's embedded graphics can be displayed through Thunderbolt ports. If you want to display to a Thunderbolt monitor, please use CPU models with embedded graphics 【グラフィック出力】1 HDMI, 1 DisplayPort, 1 Thunderbolt 4 Type-C 【PCIE】1 PCIe 5.0 x16 【PCIE X1】- 【OC】- 【SLI】- 【Cross Fire】- 【サウンド機能】Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 【USB2.0】6 USB 2.0 (2 Rear, 4 Front) 【USB3.2Gen1(USB3.0)5Gb/s】6 USB 3.2 Gen1 (4 Rear, 2 Front) 【USB3.2Gen2/Thunderbolt3 10Gb/s】3 USB 3.2 Gen2 (2 Rear, 1 Front Type-C) 【USB3.2Gen2x2 Type-C 20Gb/s】- 【Thunderbolt 4(USB4.0)】1 Thunderbolt 4 Type-C (Rear) 【Thunderbolt 4ヘッダ】 【SATA3】4 【M.2スロット】3 Hyper M.2 (PCIe Gen4 x4) 【M.2スロットヒートシンク】1 Blazing M.2 (PCIe Gen5 x4) 【M.2 Wifi】- 【無線LAN】802.11axe Wi-Fi 6E + Bluetooth 【LAN】Realtek 2.5G LAN 【LED】確認中主な仕様 Intel Core Ultra CPU (LGA1851)サポート高耐久・安定性特化 SteelLegendシリーズ20,000時間の寿命を持つ独自の1000uFコンデンサを採用12+1+1 Power Phase DesignによりスムーズにCPUへ電力供給brM.2 SSDを工具なしで簡単に取り付け可能
